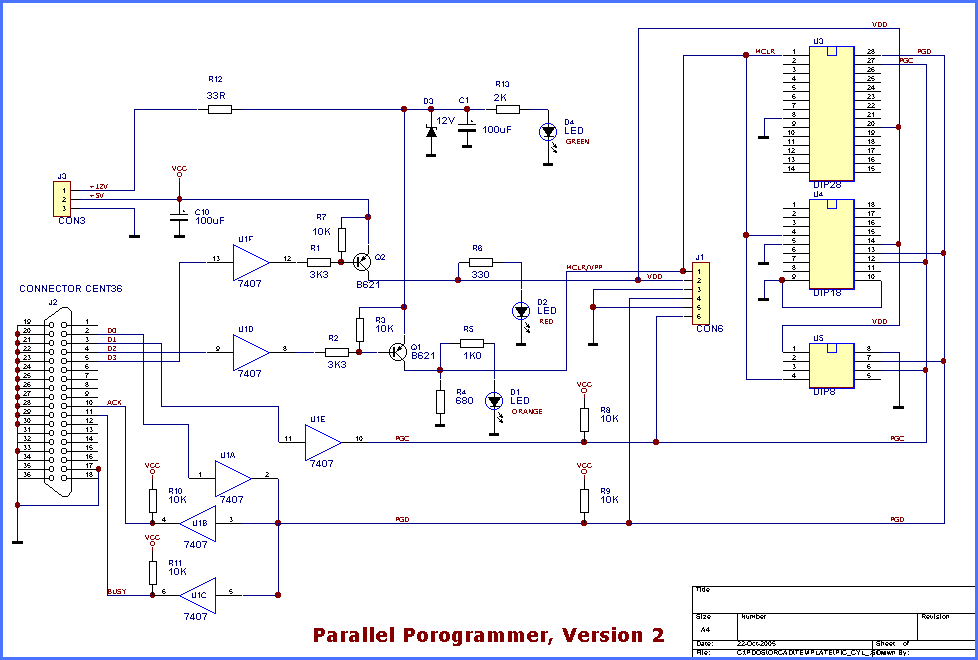

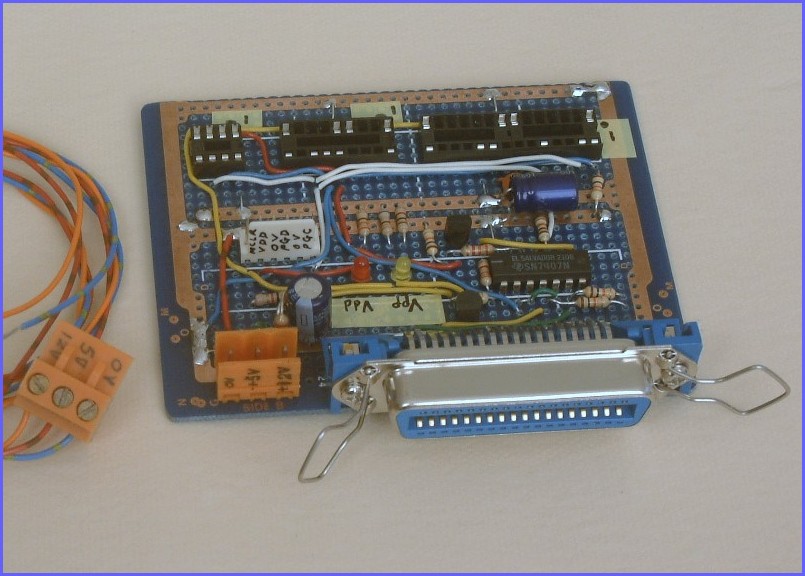

This is another version of the parallel port programmer I have built, for an old friend of mine. I made some small changes to the circuit and it also works very well. My another design is here if you want one that works with five different programming software.
Warning: The settings presented here only work with this particular design. All settings are related to the hardware design and would not work on a different design.
I have make sure the programmer works on both the following programming software. There are as follow:

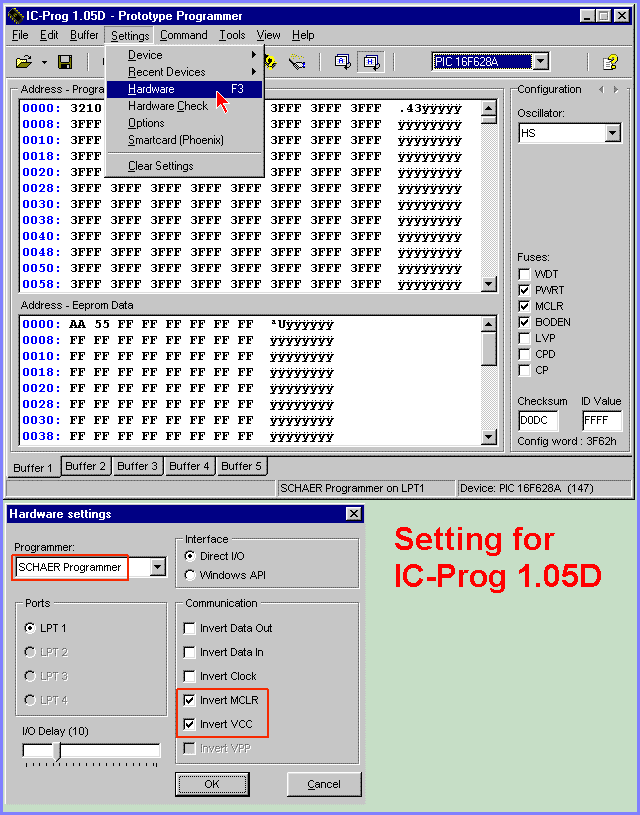

IC-Prog

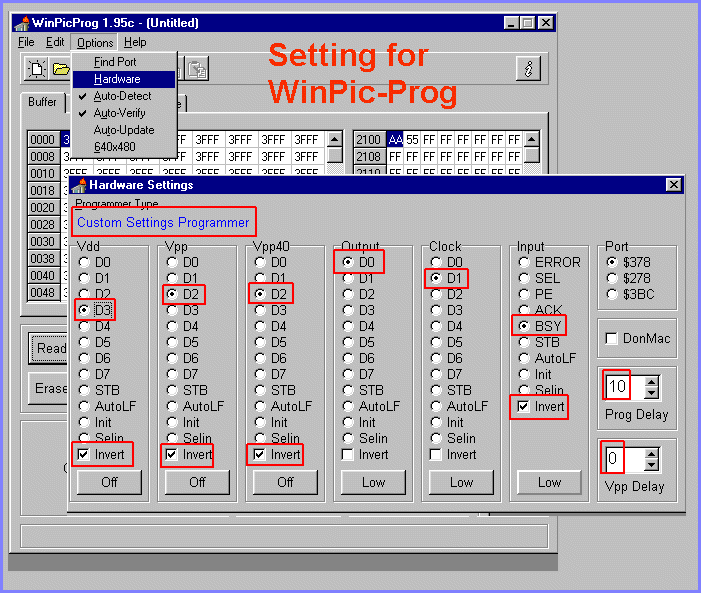

WinPicProg
I hope wou will like what I have done. Don't forget to email and tell me of your success.
Very stable and fast. Should be one's first choice if it support the PIC one has.
